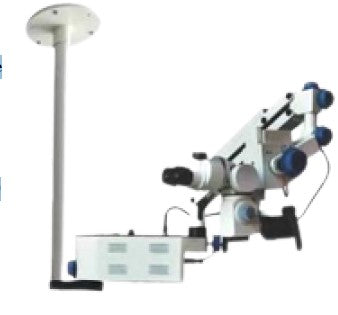

Dental Surgical Ceiling Operation Microscope

Specification

• Head: Indian Zoom Optical System

• Zoom Ratio: 6:1

• Binocular Tubes: 45° Inclined Binocular Optical Head (0° to 180° Tilting Head also available on request)

• Magnification: Continuous Zoom Magnification 5x to 25x

• Eye Pieces: 10x Wide Field (W.F.) Pair

  • (12.5x & 15x W.F. eye pieces also available on request)

• Objective Lens: F = 200 mm

  • (F = 175 mm, 250 mm, 300 mm & 400 mm also available on request)

• Field of View: 50 mm

• IPD Adjustment: 55 mm to 75 mm

• Fine Focusing: Motorized with Foot Control

Illumination

• Light Source: 15V – 150W Twin Halogen Lamps

• Light Transmission: 100% Coaxial through the Lenses

• Light Guide: Fiber Optic Light Guide – 1.5 meters

• Brightness: More than 80,000 Lux (at maximum)

• Field of Illumination: 70 mm

Arm & Stand

• Arm: Counter-balanced Pantographic Arm with 320° Rotation

• Vertical Adjustment Range: 250 mm to 300 mm

• Mounting: Ceiling Mounted (Mobile Floor Stand also available)

• Base Dimensions: 600 mm x 500 mm (Approx.)

• Height: 1500 mm (Approx.)

Weight

• Gross Weight: 60 kg (Approx.)

• Volumetric Weight: 75 kg (Approx.)

Power Requirements

• Input Voltage: AC 220V, 50/60 Hz (110V available on request)

Included Spares

• Dust Cover for microscope

• Set of Sterilizable Silicon Caps
