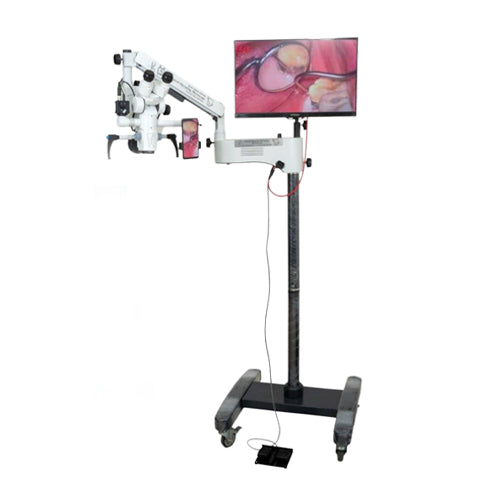

Dental Endodontic Surgery Microscope – Floor Stand (5 Step)

General Details

• Usage/Application: Dental

• Drawtube: Binocular

• Material: Metal

• Portability: Non-Portable

• Condition: New Only

• Country of Origin: Made in India

Product Overview

Dental Microscopes are essential instruments in dental procedures and surgeries. They allow optimal visualization, assessment, and preservation of tooth structure and oral tissues. These microscopes support minimally invasive procedures, enhancing precision and clinical outcomes.

Technical Specifications

• Head: Indian Zoom Optical System

• Zoom Ratio: 6:1

• Binocular Tubes: 45° Inclined Binocular Optical Head
  (0° to 180° Tilting Head available on request)

• Magnification: Continuous Zoom Magnification 5x to 25x

• Eye Pieces: 10x W.F. (Pair)
  (12.5x & 15x W.F. eye pieces also available)

• Objective Lens: F = 200 mm
  (F = 175 mm, 250 mm, 300 mm & 400 mm available on request)

• Field of View: 50 mm

• IPD Adjustment: 55 mm to 75 mm

• Fine Focusing: Motorized Foot Control

• Illumination: LED

• Field of Illumination: 70 mm

Stand and Structure

• Arm: Counter-balanced pantographic arm with 320° rotation

• Vertical Arm Range: 250 mm to 300 mm

• Mobile Stand: Floor stand on caster wheels for easy handling and absolute stability

• Base Size: 600 mm x 500 mm (Approx.)

• Height: 1500 mm (Approx.)

• Gross Weight: 60 kg (Approx.)

• Volumetric Weight: 75 kg (Approx.)

• Power Supply: AC 220V, 50/60 Hz (110V available on request)

Included Accessories

• Dust Cover for Microscope

• Set of Sterilizable Silicon Caps

Additional Information

• Production Capacity: 100 Units

• Delivery Time: 5–6 Days

• Packaging: Export Quality Packaging
