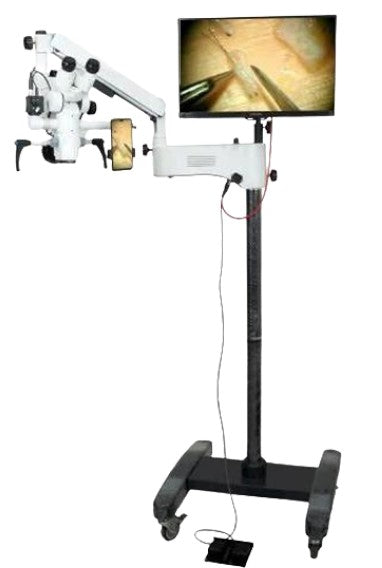

Hair Transplant Operation Microscope (3 Step) – Specification

Overview:
Hair transplant surgery demands top-tier imaging and visualization. Derma microscopes enable specialists to perform complex and minimally invasive hair transplant procedures with precision, resulting in optimal clinical outcomes.

Technical Specifications

• Head: Indian Zoom Optical System

• Zoom Ratio: 6:1

• Binocular Tubes: 45° Inclined Binocular Optical Head
  (0° to 180° Tilting Head available on request)

• Magnification: Continuous Zoom Magnification 5x to 25x

• Eye Pieces: 10x W.F. (Pair)
  (12.5x & 15x W.F. eye pieces also available)

• Objective Lens: F = 200 mm
  (F = 175 mm, 250 mm, 300 mm & 400 mm also available on request)

• Field of View: 50 mm

• IPD Adjustment: 55 mm to 75 mm

• Fine Focusing: Motorized Foot Control

• Illumination: LED

• Field of Illumination: 70 mm

• Arm: Counter-balanced pantographic arm with 320° rotation

• Vertical Range of Arm: 250 mm to 300 mm

• Stand: Mobile floor stand on caster wheels for easy handling and absolute stability, includes locking system

• Base Size: 600 mm x 500 mm (Approx.)

• Height: 1500 mm (Approx.)

• Gross Weight: 60 kg (Approx.)

• Volumetric Weight: 75 kg (Approx.)

• Power Supply: AC 220V, 50/60 Hz (110V available on request)

• Included Spares: Dust cover for microscope, Set of sterilizable silicon caps
