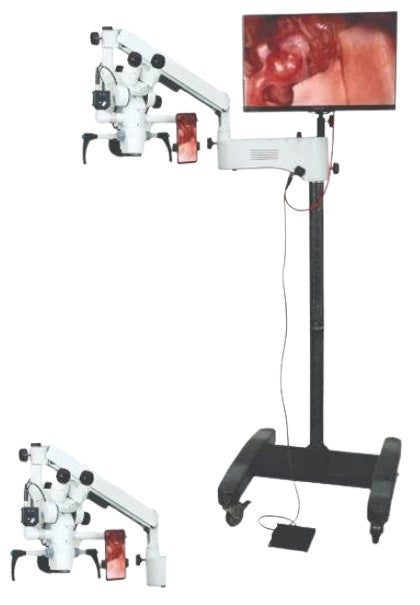

Derma Surgery Tiltable Head Microscope (5-Step) – Floor Stand Model

General Specification

• Usage/Application: Hospital

• Drawtube: Binocular

• Material: Metal

• Portability: Non-Portable

• Country of Origin: Made in India

Technical Specifications

Optical Head

• Head: Indian Zoom Optical System

• Zoom Ratio: 6:1

• Binocular Tubes: 45° Inclined Binocular Optical Head
  (0° to 180° Tilting Head also available on request)

• Magnification: Continuous Zoom Magnification from 5x to 25x

• Eye Pieces: 10x W.F. (Pair)
  {12.5x & 15x Wide Field Eye Pieces also available on request}

• Objective Lens: F = 200 mm
  (Other options: F = 175 mm, 250 mm, 300 mm & 400 mm on request)

• Field of View: 50 mm

• IPD Adjustment: 55 mm to 75 mm

Focusing & Illumination

• Fine Focusing: Motorized, Foot-Controlled

• Illumination: LED Light Source

• Field of Illumination: 70 mm

Arm & Stand

• Arm Type: Counterbalanced Pantographic Arm with 320° Rotation

• Vertical Range of Arm: 250 mm to 300 mm

• Stand: Mobile Floor Stand with Caster Wheels for Easy Handling and Stability

• Locking System: Included

Dimensions & Power

• Base Size: 600 mm x 500 mm (Approx.)

• Height: 1500 mm (Approx.)

• Gross Weight: 60 kg (Approx.)

• Volumetric Weight: 75 kg (Approx.)

• Power Supply: AC 220V, 50/60 Hz
  (110V available on request)

Accessories Included

• Dust Cover for Microscope

• Set of Sterilizable Silicone Caps

Additional Information

• Production Capacity: 100 Units

• Delivery Time: 15–20 Days

• Packaging Details: Export-Grade Packaging
