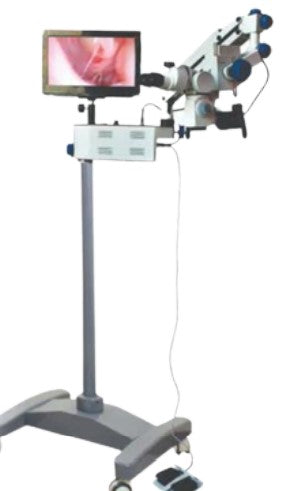

Surgical Microscope – Detailed Specifications

Basic Configuration

• Frequency: 50 MHz

• Weight: 82 Kg

• Voltage: 220 V

• Portability: Portable

• Material: Stainless Steel

Optical Head

• Articulated Arm Adjustment: 500 mm

• Viewing Head: Ergonomic Tiltable Viewing Head (0° – 180°) with Converging Optics

• Eye Pieces: 12.5x Wide Field

• Magnification: 5-Step (4x, 6x, 10x, 16x, 25x)

• Working Distance: F = 250 mm

• Interpupillary Distance Adjustment: 55 mm to 75 mm

• Focusing: Motorized with Foot Control

Illumination Section

• Light Source: LED Light with Bright White LED

• Illumination Control: Continuous Adjustment

• Field of Illumination: 70 mm

Stand Section

• Type: Mobile Floor Stand on Four Caster Wheels for Easy Handling and Absolute Stability

• Vertical Height Adjustment (Pantographic Arm): 300 mm to 560 mm

• Arm Rotation: 320° with Lock

General Information

• Base Size: 600 mm x 550 mm

• Height: 1550 mm

• Power Supply: AC 220V

Accessories Included

• Double Beam Splitter

• C-Mount for CCD Camera

• C-Mount for Mobile Phone (Compatible with Any Model)

• LED Screen
